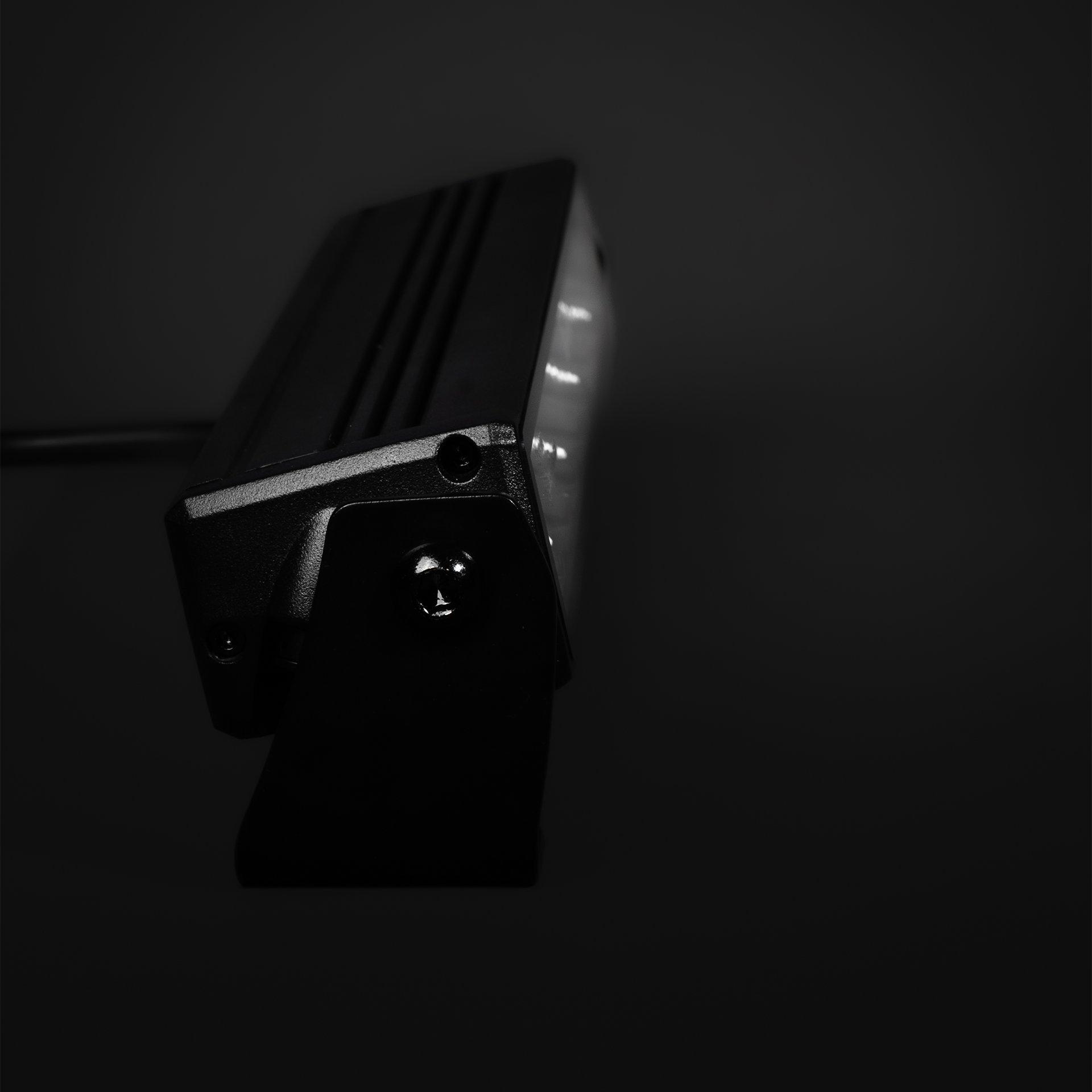

The updated Viklight Ymer PRO is an evolution of one of our most popular LED light bars and is now equipped with even longer light (76 meters longer, now a total of 470 meters) and modern standing position lights in selectable orange or white.
-E-marked as extra lights
-Dual mounting systems, stepless rail, and side feet.
-Only 38 mm high, lightweight and easy to install
-Good light length, 1 lux at 470 meters!
-Fully covered Lexan lens to avoid paint loss due to stone chips
Ymer is our thinnest LED light bar yet at only 38mm in height, making it easy to mount under or above the license plate due to its very low weight. The bar can be mounted both standing and hanging. E-approved for use as extra lights on the road, and the reference number of 30 provides good light length.
Ymer has a light pattern that extends the vehicle's regular high beam. The Viklight Ymer has a fully covered curved polycarbonate lens that protects the paint from stone chips and facilitates water drainage.
What do I need more?
The light bar does not include a cable kit, but the bar's DT connector fits well with our DT cable kit. The wiring includes a fuse, relay, and switch. The wiring does not have a ready connection for position lights. An extra loose DT connector is included in the box. The LED light bar comes with two different mounting systems which facilitate installation: a stepless rail at the rear of the bar and L-shaped metal feet for mounting on the short sides. It is preferably used together with the universal extra light bracket H320. This light bar can also be double-mounted with our extra light holder B230.
Data LED Extra Light Bar Viklight Ymer PRO 14-inch:
Housing: Aluminum
Mounting: Stepless rail at the rear of the bar, approximately 30 degrees adjustment possibility in vertical direction. Side-mounted feet with 360-degree adjustment possibility are included. Ymer can be mounted hanging and standing.
Ventilating membrane according to Gore-Tex principle allows for any condensation to escape.
Number of LEDs: 12 pieces 5 watt LG LED (60W)
Number of Lumens: 7600 theoretical (2950 in ECE mode)
Light length with 1 lux: 470 meters
E-marked: Yes, E8 ECE R112 Reference number 30 in ECE mode
Voltage: 9-30 volts DC
Current consumption: 3.8 Amp at 12 V
Color temperature: approximately 6500 K
Light pattern: Driving beam, extends high beam
IP class: IP68, withstands weather and wind.
Length: 353 mm
Height excluding mounting bracket: 38 mm
Height including mounting bracket: 55 mm
Depth: 69 mm
Lens: Polycarbonate
Electrical connection: White cable: 12/24v+ for White position light
Yellow cable: 12/24v+ for Orange position light
Green cable: 12/24v+ for ECE mode (lower power)
5-year warranty.
WLTP info WLTP weight: 0.9kg WLTP front area: 0.0142(m2)
Note: Sold individually. Delivery info: When ordering more than current stock balance or if stock status is "special order," this product has a normal delivery time of about 10-14 working days
